Our Surface Technology business unit aspires to be a reliable and expert partner for producers of paints and varnishes, printing inks, adhesives and sealants as well as construction chemical products and lubricants.
We stand for comprehensive expertise in raw materials for the specified fields of application. As we are both an independent distributor and an experienced producer, we are able to generate synergies which we deploy to react flexibly to customer wishes.
Products | Tg [oC] | Molecular weight [g/mol] | Coil Coating | Can Coating | Packaging |
---|---|---|---|---|---|
LUVORES® SP 82 | 60 | 5000 | x | x | |
LUVORES® SP 91 | 89 | 12000 | x | x | |
LUVORES® SP 92 | 104 | 12000 | x | x | |
LUVORES® SP 25 | 65 | 15000 | x | x | x |
LUVORES® SP 49 | 40 | 15000 | x | x | |
LUVORES® SP 85 | 40 | 15000 | x | ||
LUVORES® SP 33 | 32 | 16000 | x | ||
LUVORES® SP 26 | 68 | 17000 | x | x | |
LUVORES® SP 41 | 47 | 17000 | x | x | |
LUVORES® SP 89 | 70 | 19000 | x | x | |
LUVORES® SP 95 | 70 | 19000 | x | x | |
LUVORES® SP 21 | 67 | 20000 | x | x | x |
LUVORES® SP 28 | 65 | 20000 | x | ||
LUVORES® SP 65 | 40 | 20000 | x | x | x |
Mineral fillers for paint and coatings improve or influence technical and / or optical properties such as colour, hiding power and brightness. They are used to increase the volume, change the material density value and reduce the formulation costs of end customers. Other properties can be the anticorrosion protection in lacquers, influence of rheology in paints, increase scratch resistance and improve UV protection or flame-resistance of end products.
Rheology Performance | Physical Properties |
---|---|
|
|
ARTIC MIST©, CIMPACT©, JetWhite©, JetFill©, JetFill©M, MAGRIS TALC MISTRON©, NICRON©, SIERRALITE©, SILVERLINE©, STELLAR©, VERTAL©, YELLOWSTONE©

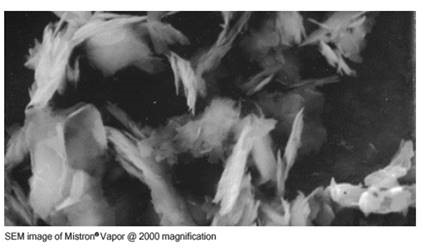

In the modern world of paint industry today, talc is more than a simple mineral filler. MAGRIS TALC offers highly lamellar talc products as well as microcrystalline and engineered types fine-grades reduced.
Bright white JETWHITE© und MISTRON© products as well as cost-effective NICRON© and SILVERLINE© products offer the laboratory developer a high degree of flexibility to balance the advantages of technical colour performance and improved process ability with rising raw material prices and higher production output.
Product | Form | Application | Benefits | D50 sedigraph | D98 sedigraph | Brightness [GEB] |
---|---|---|---|---|---|---|
JetWhite© 1H/HC | Natural white powder, submicron talc, bags | Additive for decorative paints, can coating | For maximum hiding power and brightness, TiO2 extender | 1.1 | ca. 6 (Hegman 7.5) | Y90 |
JetWhite© 7H/HC | Natural white powder, ultrafine talc, bags | Additive for decorative paints, can coating | For maximum hiding power and brightness, TiO2 extender | 1.9 | ca. 8 (Hegman 7) | Y91 |
NICRON© 665 | Natural white powder, microcrystalline talc, bags | Architectural and industrial primers and topcoats | Film strength and flexibility, provides barrier properties, very bright | 1.2 | ca. 9 (Hegman 6.5) | 87 |
MISTRON© MONOMIX | Natural white powder, micronzed talc, bags | Engineered and high performance, industrial and primers, protective coatings | High surface area and tight top-size control, anticorrosive functionality, rheology contribution | 2 | ca. 10 (Hegman 6) | 88 |
NICRON© 604 SILVERLINE© 604 | Natural white powder, microcrystalline talc, bags | Architectural and industrial primers and topcoats | Film strength and flexibility, provides barrier properties, improve corrosion resistance and stain-blocking ability | 2.3 | ca. 12 (Hegman 6) | 85 |
STELLAR© 510 | Natural white powder, lamellar talc, bags | Architectural and topcoats where high brightness is needed | Film strength and flexibility, provides barrier properties, very bright | 5 | ca. 15 (Hegman 5.5) | Y88 |
SILVERLINE© 504 | Natural white powder, microcrystalline talc, bags | Architectural and industrial primers, non-color sensitive applications | Improve corrosion resistance and stain-blocking ability, improve sag resistance and maximize prime pigment extension | 3.2 | ca. 20 (Hegman 5) | 81 |
NICRON© 403 MISTRON© 403 | Natural white powder, microcrystalline talc, bags | Architectural, wood and industrial primers and topcoats | Film strength and flexibility, provides barrier properties, semi-transparent wood stains to prevent tannin bleed, improve corrosion resistance and stain-blocking ability | 4.7 4.5 | ca. 25 (Hegman 4) | 83 86 |
JetWhite© 4H | Natural white powder, medium talc, bags | Decorative paints, architectural and industrial primers | Improve barrier properties which impart corrosion resistance and stain blocking ability | 5.7 | (Hegman 4-4.5) | Y90 |
VERTAL© 77 | Natural white powder, talc/carbonate mineral pigment, bags | Waterborne primers architectural and industrial, stain-blocking primers, sealers, undercoaters | Provides a unique balance of prime pigment spacing (opacity), film reinforcement, anti-cracking and barrier properties | 9 | ca. 25 | 78 |
NICRON© 303 | Natural white powder, microcrystalline talc, bags | Architectural, wood and industrial primers, also adhesive, sealant, caulk, joint compound, wood putty, and auto body patch applications | Film strength and flexibility, provides barrier properties, improve corrosion resistance and stain-blocking ability, good sandability | 7 | ca. 30 (Hegman 3) | 82 |
MISTRON© 303 NICRON© 302 | Natural white powder, microcrystalline engineered talc, bags | Protective coatings and marine coating applications, architectural flat exterior latex paints | Disperses easily in high-solids and solvent-borne coatings, good paint stability, rheology and anti-settling properties. Low sheen, good touch-up, good fade- and chalk-resistance | 7.5 13 | ca. 35 (Hegman 3) | 80 84 |
VERTAL© 92 | Natural white powder, talc/carbonate mineral pigment, bags | Auto Rep Grouts, Car Putties Autofill | Highly lamellar talc, macrocrystalline 200 Mesh, good sanding for abrasive paper use | 17.5 | ca. 45-50 | Y72 |
SILVERLINE© 202 | Natural white powder, microcrystalline engineered talc, bags | Airless-spray architectural waterborne flat paints | Engineered talc recommended where low viscosity build pigments are required, providing excellent sheen control, scrub resistance with minimal wear on airless spray equipment | 19.8 | ca. 50 (Hegman 2.5) | 76 |
JetWhite© 2H | Natural white powder, coarser talc, bags | Decorative paints, architectural and industrial primers | Improve barrier properties which impart corrosion resistance and stain blocking ability | 11 | ca. 60 (Hegman 2) | Y87 |
JetFil© M200 | Natural white powder, bags | General purpose applications for coarse talcs | High purity, platy, coarse talc | 10 | ca. 60 (Hegman 2) | Y78 |
SILVERLINE© 001 | Natural white powder, bags | Industrial floor screed, coarse filler | Concrete form lubricant, parting agent for rolled asphalt, roofing, floor tile | 14 | ca. 40 - 60 | off white |
VERTAL© AF | Natural white powder, UL Environment labeled for sustainability, only BB 2000 lbs | Construction, Bitumen Roofing, Flooring, Adhesives, Sound Damping | Talc with high magnesite content | 23 | 325 Mesh (44 µm) %passing 60-85 | off white |

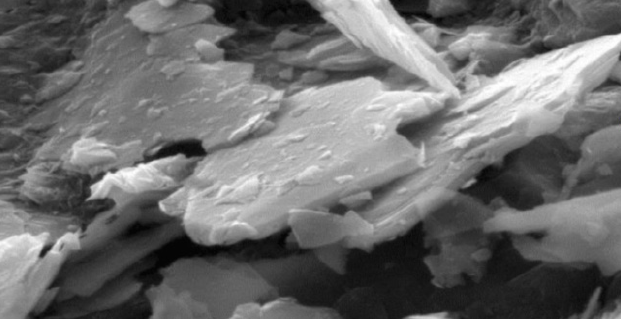

MAGRIS Talc products are high-purity, functional additives ideal for putties and liquid compounds. Talc improves dimensional stabilityand reinforces putties and liquid compounds, giving added protection, against cracking and shrinking. Talc is the industry standard for sanding properties and polishing properties.
For putties and liquid compounds, adhesives and sealants we can offer also products from VERTAL© series with carbonic binding.
Applications | Physical Properties |
---|---|
|
|
Product | Form | Application | Benefits | D50 sedigraph | D98 sedigraph | Brightness [GEB] |
---|---|---|---|---|---|---|
NICRON© 302 | Natural white powder, bags | Sealants and Caulks, Pressure Sensitive and Structural Adhesives | High loading low viscosity, high brightness | 13 | ca. 30 (Hegman 3) | Y82 |
SILVERLINE© 303 | Natural white powder, bags | Pastes & Mastics, cementitious and self-leveling Compounds, fine | Finer top-size for smooth Finishes and application properties | 6,1 | ca. 40 | 78 |
VERTAL© 92 | Natural white powder, talc/carbonate mineral pigment, bags | Auto Rep Grouts, Car Putties Autofill | Highly lamellar talc, macrocrystalline 200 Mesh, good sanding for abrasive paper use | 17,5 | ca. 45 | Y72 |
VERTAL© 97 | Natural white powder, talc/carbonate mineral pigment, bags | Pastes & Mastics, cementitious and self-leveling Compounds | Highly lamellar talc, macrocrystalline 200 Mesh, good sanding for abrasive paper use | 15 | 50 | Y72 |
SILVERLINE© 002 | Natural white powder, bags | Pastes & Mastics, cementitious and self-leveling Compounds | High loading low viscosity | 8,4 | 55 | 75 |
VERTAL© TC-100 | Natural white powder, talc/carbonate mineral pigment, bags | Pastes & Mastics, cementitious and self-leveling Compounds | Improves resistance to cracking, smoothing and sandability, macrocrystalline 200 Mesh | 16,4 | 325 Mesh (44 µm) %passing 88 | off white |
VERTAL© AF | Natural white powder, UL Environment labeled for sustainability, only BB 2000 lbs | Construction, Bitumen Roofing, Flooring, Adhesives, Sound Damping | Talc with high carbonate (Mg) content, improved dimensional stability, cross-flow mechanical performance, and flexural stiffness | 23 | 325 Mesh (44 µm) %passing 60-85 | off white |
magris-talc©-series---natural-talcs-for-putties-and-liquid-compounds,-adhesives-and-sealings.pdf
Talc is oleophilic which gives it the ability to associate with liquid resins such as alkyds, epoxies, polyesters, acrylics, amines and polyols. In doing so, they create weak bonds with these resins that result in increased low-shear viscosity. When shear is applied the bonds break quickly, resulting in shear-thinning rheology that is ideal for many applications.
Anorganic reinforcing fillers for industrial applications are an important backbone in modern composite materials. We offer various staple fibres and centrifuged microfibers for different applications.
A staple fibre is produced using an endless sheet (roving) and then cut into the necessary fibre lengths. The roving is spun from the liquefied material. Each of these rovings is made up of several dozen filaments (single fibres), which are then cut into the desired length after cooling.
Centrifuged glass microfibers are sprayed through an extruder head, thus obtaining a clearly finer distribution than conventional fibres. For this reason, the appearance is rather more like wadding than fibre.
HOP-MIX 2303-A0 is one of the centrifuged glass microfibers. These fibres draw on a sophisticated process, which liquefies a glass and then sprays it in very delicate fibres. These fibres then exist as casts and can be embedded into a matrix. The chemistry of the glass and the small fibre diameter help to create a transparent end product, even in the highest applied concentrations. The systematic distribution of the very fine fibres offers higher resistances over the entire structure. It is also possible to use it as a cost-effective replacement for pyrogenic silica, as HOP-MIX also has a high absorption capacity with a large surface area.
Basalt fibers consist of naturally occurring rock. The production process is adapted to the characteristics of this very pure raw material. For the chopped fibers, an endless strip (roving) is first produced from the liquid melt of the raw material and then cut into the required fiber length. Each of these rovings consists of several filaments (single fibers), which are standardly coated with a silane finishing.
TRI-SPHERES® are hollow multi-cellular microspheres with a popcorn structure on a silicate basis. TRI-SPHERES® serve as functional lightweight fillers. Their heat resistance is up to 1,500 °C. Their compressive strength ends at 2,900 PSI / 20 Mpa. With a view to any shear forces occurring during the incorporation, their multi-cellular structure avoids that all spheres are destroyed at high forces. TRI-SPHERES® are marked by a clear bright colour.
TRI-SPHERES® can be used as lightweight fillers in many different applications such as paints and coatings, foams in composites as well as in hydraulic-setting cement for construction chemistry (TRI-SPHERES® 120 XL). With a view to the optimisation of acoustic and thermal properties, TRI-SPHERES® 300 and 400 are recommended. In particular the fine TRI-SPHERES® 45XS Ultra achieves good results in partial weight reduction of PP polymer for injection mouldingwhen adding 10 – 15 % as an additive for the last step.
Products | D50 [μm] | D50 [μm] | Bulk density [kg/m³] | Crush strength [psi] | Effective density [kg/m³] |
---|---|---|---|---|---|
TRI-SPHERES® 45XS ULTRA | 40 | 80 | 450 | 1,450 | - |
TRI-SPHERES® 300S | 70 | 135 | 300 | 1,160 | 550 |
TRI-SPHERES® 400S | 75 | 160 | 400 | 623 | 650 |
TRI-SPHERES® 500S | 75 | 140 | 500 | 1,305 | - |
TRI-SPHERES® 200 | 100 | 375 | 200 | 130 | 340 |
TRI-SPHERES® 250 | 100 | 500 | 250 | - | - |
TRI-SPHERES® 300 | 75 | 270 | 300 | 319 | 500 |
TRI-SPHERES® 350 | 100 | 290 | 350 | - | - |
TRI-SPHERES® 400 | 100 | 400 | 400 | 667 | 670 |
TRI-SPHERES® 450 | 75 | 230 | 450 | 725 | 720 |
TRI-SPHERES® 90XL | 200 | 700 | 90 | 21 | 190 |
TRI-SPHERES® 100XL | 700 | 1,700 | 90 | 36 | 210 |
TRI-SPHERES® 120XL | 400 | 800 | 120 | 50 | 200 |
The stated values correspond to typical values and hence do not represent a specification.
tri-spheres®.pdfOMEGA-SPHERES® are hollow ceramic microspheres > 150 μm which are used as functional lightweight filler is several industries. OMEGA-SPHERES® are characterised by a high thermal and mechanic resistance and are available in different distribution particle sizes.
Because of their weight-reducing and insulating properties, OMEGA-SPHERES® are used preferentially in construction chemical products such as adhesives and sealants. They are also used as pore generators in friction and brake linings as well as in grinding and separating tools.
Products | Particle size [μm] | Bulk density [kg/m³] | Crush strength [MPa] | Temperature max. [°C] |
---|---|---|---|---|
OMEGA-SPHERES® 150 | 0 - 150 | 390 | 14 | 1,200 |
OMEGA-SPHERES® 300 | 0 - 300 | 400 | 14 | 1,200 |
OMEGA-SPHERES® SG | 0 - 500 | 400 | 14 | 1,200 |
OMEGA-SPHERES® G250-6 | 250 - 700 | 400 | 14 | 1,200 |
The stated values correspond to typical values and hence do not represent a specification.
omega-spheres®,-grey.pdfOMEGA-SPHERES® W are marked by a particularly high thermal resistance, low iron content and a white colour. They are available in different distribution particle sizes.
Because of their particularly high heat resistance, OMEGA-SPHERES® W are preferentially used in the refractory and foundry industries. The white colour allows their use in aesthetically demanding applications such as decorative plasters and wall paints.
Products | Particle size [μm] | Bulk density [kg/m³] | Crush strength [MPa] | Temperature max. [°C] |
---|---|---|---|---|
OMEGA-SPHERES® W150 | 0 - 150 | 410 | 25 | 1,600 |
OMEGA-SPHERES® W300 | 0 - 300 | 410 | 25 | 1,600 |
OMEGA-SPHERES® WM | 150 - 300 | 390 | 25 | 1,600 |
OMEGA-SPHERES® W250-6 | 250 - 700 | 400 | 25 | 1,600 |
The stated values correspond to typical values and hence do not represent a specification.
omega-spheres®,-white.pdfTHERMO-SPHERES® G are high quality hollow ceramic microspheres < 150 μm, which are characterised by a high degree of fineness as well as a particularly high mechanical strength. The products are pre-dried. Because of the high fineness, they display good grinding properties and are, therefore, highly suitable as insulation and lightweight filling materials.
THERMO-SPHERES® G are used in applications which require the use of particularly small hollow microspheres or make high demands on surface finish. This includes, apart from the use in paints and coatings, composite materials, special casting compounds and putties, adhesives and sealants.
Products | Particle size [μm] | Bulk density [kg/m³] | Crush strength [MPa] | Temperature max. [°C] |
---|---|---|---|---|
THERMO-SPHERES® G75 | 0 - 75 | 350 | 14 | 1,200 |
THERMO-SPHERES® G100 | 0 - 100 | 400 | 14 | 1,200 |
The stated values correspond to typical values and hence do not represent a specification.
thermo-spheres®,-grey.pdfTHERMO-SPHERES® W are white, high quality hollow ceramic microspheres < 150 μm, which are characterised by a high degree of fineness as well as a particularly high mechanical strength. The products are pre-dried and usable for foundry industry. The white colour allows their use in aesthetically demanding applications such as decorative plasters and wall paints.
THERMO-SPHERES® W are used in bright applications which require the use of the smallest possible microspheres or make high demands on surface quality. This includes applications in addition to the use in paints and coatings, surfaces as well as special casting compounds and adhesives where a high whiteness is advantageous.
Products | Particle size [μm] | Bulk density [kg/m³] | Crush strength [MPa] | Temperature max. [°C] |
---|---|---|---|---|
THERMO-SPHERES® W75 | 0 - 75 | 400 | 25 | 1,600 |
THERMO-SPHERES® W100 | 0 - 100 | 400 | 25 | 1,600 |
THERMO-SPHERES® W125 | 0 - 125 | 400 | 25 | 1,600 |
The stated values correspond to typical values and hence do not represent a specification.
thermo-spheres®,-white.pdfLITHO-BUBBLES® are silicate based mineral granules. They are multicellular, open celled foam granulate which has many different uses as lightweight filler.
LITHO-BUBBLES® are used as lightweight filler in aqueous, solvent-containing and solvent-free systems such as paints and coatings, refractory and foundry products, mould making, grinding agents or construction chemical products.
Products | Particle size distribution [μm] | Bulk density [kg/m³] |
---|---|---|
LITHO-BUBBLES® 40 | 0 - 40 | 650 |
LITHO-BUBBLES® 100 | 40 - 100 | 470 |
LITHO-BUBBLES® 300 | 100 - 300 | 340 |
LITHO-BUBBLES® 600 | 300 - 600 | 390 |
The stated values correspond to typical values and hence do not represent a specification.
litho-bubbles®.pdfLITHO-BUBBLES® H is a hydrophobic mineral granule, multi-cellular, open-celled foam granulate which has many different uses as lightweight filler.
LITHO-BUBBLES® are preferentially used as lightweight filler in aqueous but also in solvent-containing and solvent-free systems such as paints and coatings, refractory and foundry products, mould making, grinding agents or construction chemical products. Sometimes customer wish a hydrophobic treatment for special use in cement base systems for building and construction.
litho-bubbles®,-hydrophobic.pdfProducts | Particle size distribution [μm] | Bulk density [kg/m³] |
---|---|---|
LITHO-BUBBLES® 100H | 40 - 100 | 470 |
LITHO-BUBBLES® 300H | 100 - 300 | 340 |
LITHO-BUBBLES® 600H | 300 - 600 | 390 |
LITHO-BUBBLES® 1000H | 500 - 1000 | 330 |
The stated values correspond to typical values and hence do not represent a specification.
litho-bubbles®,-hydrophobic.pdfProducts | Description | Application |
---|---|---|
F-30E F-50E F-65E | Expanded hollow microspheres consisting of a flexible organic polymer shell, moistened | Lightweight fillers for a wide variety of applications with good resistance to temperature and solvents |
F-65DE F-80DE FN-80SDE | Expanded hollow microspheres consisting of a flexible organic polymer shell |
Products | Description | Application |
---|---|---|
F-30 | Thermally expandable hollow microspheres consisting of a flexible organic polymer shell | Blowing agent for structural foams, matting agents of PVC plastisols, flexibilization of sealant systems, anti-slip coatings, general density reduction, improvement of thermal and acoustic insulation, for temperature ranges from 90 °C to 250 °C |
F-36 F-36D F-46N F-79D F-80 F-82D F-100D FN-105 F-170D F-190D F-230D F-260D F-2800D F-2830D F-2860D | Thermally expandable hollow microspheres consisting of a flexible, organic polymer shell, chlorine-free products | Blowing agent for structural foams, matting agents of PVC plastisols, flexibilization of sealant systems, anti-slip coatings, general density reduction, improvement of thermal and acoustic insulation, for temperature ranges from 90 °C to 250 °C |
MBF-190EVA50 MBFN-190SSPE | Thermally expandable hollow microspheres as 50% masterbatches | Blowing agents for extrusion and injection moulding |
OMEGA-SIL® are solid aluminium silicate spheres which have a very high compressive strength. The OMEGA-SIL® SPECIAL* product range consists of aluminium silicates that are processed in an additional processing step sifted. This particularly sharp separation of the top cut results in aesthetic applications to smoother surfaces.
Due to the lower specific surface the use of OMEGA-SIL® in paints and coatings allows a higher degree of filling. OMEGA- SIL® shows in cementitious systems pozzolanic reactivity. The inside microcrystalline structure results in a significant increase of mechanical strength.
Products | D50 [μm] | D95 [μm] | Effective density [g/cm³] | Bulk density [kg/m³] |
---|---|---|---|---|
OMEGA-SIL® XS | 3.5 | 9.5 | 2.51 | 780 |
OMEGA-SIL® S | 4.5 | 11.5 | 2.48 | 800 |
OMEGA-SIL® M | 6.5 | 30.0 | 2.40 | 870 |
OMEGA-SIL® L | 12.5 | 75.0 | 2.39 | 880 |
OMEGA-SIL® XL | 50.0 | 200.0 | 2.25 | 1,090 |
OMEGA-SIL® XS SPECIAL | 3.5 | 9.5* | 2.51 | 780 |
OMEGA-SIL® S SPECIAL | 4.5 | 11.5* | 2.48 | 800 |
OMEGA-SIL® M SPECIAL | 6.5 | 30.0* | 2.40 | 870 |
Product items shown with an asterisk * describe top cut (d98) modified versions for aesthetical surfaces.
The stated values correspond to typical values and hence do not represent a specification.
OMEGA-BUBBLES® C are multicellular expanded glass granules. The high whiteness can help to reduce the addition of titanium dioxide in cementitious formulation. For aesthetic applications like acoustic construction or ceilings the ultra-white lightweight fillers meet today's spirit of time. OMEGA-BUBBLES® C being based on selected recycled glass. Using these products is sustainable and environmentally friendly and can reduces your green CO2 footprint in later disposal issues.
OMEGA-BUBBLES® C are available in the grain sizes customary on the market for the construction and insulation industry.
Products | Particle size range [mm] | Grain gross density [kg/m³] | Bulk density [kg/m³] |
---|---|---|---|
OMEGA-BUBBLES® C-XS | 0,1 - 0,3 | 680 - 920 | 340 - 460 |
OMEGA-BUBBLES® D-S | 0,25 - 0,5 | 460 - 620 | 255 - 345 |
OMEGA-BUBBLES® C-M | 0,5 - 1,0 | 380 - 510 | 210 - 290 |
OMEGA-BUBBLES® C-L | 1,0 - 2,0 | 310 - 420 | 190 - 250 |
OMEGA-BUBBLES® C-XL | 2,0 - 4,0 | 260 - 360 | 160 - 220 |
The stated values correspond to typical values and hence do not represent a specification.
omega-bubbles©-c-–-ultra-white.pdfOMEGA-BUBBLES® D are multi-cellular, closed cell expanded glass granules which serve as functional lightweight filler. OMEGA-BUBBLES® D have fire class A1 and a thermal conductivity of 0.07 W/mK. They are resistant to pressure, humidity and acid and are characterised by acoustically insulating properties.
OMEGA-BUBBLES® D-XS and D-S are used in READY-TO-USE plasters and paints. The types OMEGA-BUBBLES® D-M to D-XL are preferentially applied in plasters, mortars and other construction chemical products. In adhesives, grinding and friction applications OMEGA-BUBBLES® D have turned out to be effective spacers and pore-forming agents.
Products | Particle size range [mm] | Grain gross density [kg/m³] | Bulk density [kg/m³] |
---|---|---|---|
OMEGA-BUBBLES® D-XS | 0,1 - 0,3 | 680 - 920 | 340 - 460 |
OMEGA-BUBBLES® D-S | 0,25 - 0,5 | 460 - 620 | 255 - 345 |
OMEGA-BUBBLES® D-M | 0,5 - 1,0 | 380 - 510 | 210 - 290 |
OMEGA-BUBBLES® D-L | 1,0 - 2,0 | 310 - 420 | 190 - 250 |
OMEGA-BUBBLES® D-XL | 2,0 - 4,0 | 260 - 360 | 160 - 220 |
The stated values correspond to typical values and hence do not represent a specification.
omega-bubbles®-d.pdfProducts | Description | Application |
---|---|---|
LUVOTIX® R | Castor oil derivative | For various applications in low to medium polar systems at moderate temperatures |
LUVOTIX® R-RF | Castor oil derivative, inorganically modified | Free-flowing and easy dispersible for highly filled systems |
LUVOTIX® ZR 50 | Castor oil derivative, inorganically modified | For use in solvent-free and high solid formulations such as putties and sealants |
LUVOTIX® HT | Castor oil derivative, polyamide-modified | Temperature stabilized, for various applications in low to medium polar systems |
LUVOTIX® HT-SF | Castor oil derivative, polyamide-modified | Fine grade of LUVOTIX HT, for easier activation |
LUVOTIX® ZH 5 | Castor oil derivative, polyamide-modified, with inorganic content | Free-flowing and easy dispersible |
LUVOTIX® ZH 50 | Castor oil derivative, polyamide-modified, with inorganic content | For highly filled systems containing medium to higher polar solvents |
LUVOTIX® R400 | Castor oil derivative | Process additive and flow modifier |
LUVOTIX® HP | Polyamide | For solvent-based and -free systems of medium and higher polarity |
LUVOTIX® AB | Blend of polyamides | Sag control in high gloss and highly filled systems of medium and higher polarity |
LUVOTIX® SAB | Blend of polyamides | Sag control and anti-settling action, especially recommended for high-gloss systems based on acrylate or polyester |
LUVOTIX® PAB | Blend of polyamides | Control of rheological properties in gloss top-coats and in primers |
LUVOTIX® P 100-15 | Polyolefin | Anti-settling, slight viscosity increase |
LUVOTIX® VP031 | Polyolefin/stearic acid derivative hybrid | Easy activation, for high built coatings, sealants and adhesives based on MS-polymer |
LUVOTIX® LT1 | Blend of Polyamides | For solvent-based and -free formulations at low process temperatures |
LUVOTIX® LT10 | Blend of Polyamides | Activation at min. 50°C in high solids and in solvent free sealants and adhesives based on MS-polymer |
LUVOTIX® TK1 | 2-pack-rheological additive | Used in situ in combination with crosslinker LUVOTIX® CL1,suitable for all Systems independent on polarities |
LUVOTIX® CL1 | 2-pack-rheological additive | Used as a crosslinker in situ combined with LUVOTIX®TK1 in a mixing ratio 30:100 |
LUVOTIX® ATAC 10 | Low-viscosity acrylate emulsion, 30% in H2O | Shear-thinning rheological profile with weak thickening action |
LUVOTIX® ATAC 20 | Low-viscosity acrylate emulsion, 30% in H2O | Shear-thinning rheological profile with medium-strength thickening action |
LUVOTIX® ATAC 30 | Low-viscosity acrylate emulsion, 30% in H2O | Shear-thinning rheological profile with strong thickening action |
LUVOTIX® ATUR 10 | Non-ionic PU thickener | Newtonian rheological profile with weak thickening , 25% in H2O |
LUVOTIX® ATUR 20 | Non-ionic PU thickener | Slightly shear-thinning rheological profile with moderate thickening, 25% in H2O |
LUVOTIX® ATUR 30 | Non-ionic PU thickener | Strongly shear-thinning rheological profile with strong thickening, 40% in BTG/H2O |
luvotix®-manufacturer:-lehmann&voss&co..pdf
Products | Description | Application |
---|---|---|
LUVOGEL® 4 LUVOGEL® 4 B | Montmorillonite, organically modified | For low to medium polar systems, polar activator recommended |
LUVOGEL® 7 | Montmorillonite, organically modified | For medium to high polar systems, polar activator recommended |
LUVOGEL® SA 1 | Montmorillonite, organically modified | For a wide range of polarity, self-activating |
LUVOGEL® SA 10 | Montmorillonite, organically modified | For low-polar aliphatic systems, selfactivating |
LUVOGEL® G58 | Layered silicate, organically modified | Used as a rheological additive and anti-settle additive in unsaturated polyester resins, epoxy resins and vinyl esters, especially in styrene-containing and solvent-containing formulations of different polarity, but also in solvent-free epoxy resin systems |
Products | Description | Application |
---|---|---|
LUVOGEL® W1 | Montmorillonite, organically
| Anti-settling agent
|
LUVOGEL® W2N | Synthetic Hectorite | Thickening agent forming strong thixotropy for pigmented and transparent systems
|
LUVOGEL® W3 | Montmorillonite, organically modified
| Anti-settling and thixotropic agent |
LUVOGEL® WS1 | Synthetic hectorite | Used as a rheological booster in combination with associative thickeners. As the sole rheological additive, it acts as a thixotropic agent.
|
LUVOGEL® WS2 | Synthetic hectorite | Used as a rheological booster, thixotropic agent and stabilizer of multicolour paints |
LUVOGEL® AQ | Synthetic hectorite | Excellent stabilisation and orientation of effect pigments, forms colourless colloidal dispersions in water |
Inorganic thickeners of the WOLLATROP® series are based on inosilicate technology. This technology has a similar effect to the well-known phyllosilicate thickeners, but behaves very differently in the high shear range. Due to the thread-like structure, alignment in the printing direction is possible, which allows easier processing than comparable phyllosilicates.
Their valued properties in the high shear range as well as their strong thixotropic effect support an excellent product. By combining different types it is possible to create a rheology profile tailored to the needs of the user. With different processes it is possible to significantly influence the thickening effect.
Series | Product | Description | Applications |
---|---|---|---|
WOLLATROP®-S Series | WOLLATROP®-S | Specially prepared, 100% mineral silicate additives with a particularly high active surface Improvement in the sagging behaviour of coatings and reduction in the settling of pigments and fillers | Preferred in building chemistry applications such as building adhesives and sealing compounds. Rheological adjustment for water-based paints and lacquers. |
WOLLATROP®-SE | |||
WOLLATROP®-SF | |||
WOLLATROP®-S/240 | WOLLATROP®-S/240 is a 100% natural mineral compound which acts as a very good thixotropic agent. | Crack bridging in building chemicals, adhesives, sealants and putties | |
WOLLATROP®-LV | WOLLATROP®-LV is a silicate additive which has been given a particularly high active surface area by a special digestion process. WOLLATROP®-LV reduces sagging and settling of pigments and fillers. | Water-borne paints and lacquers Building chemicals | |
WOLLATROP®-M | WOLLATROP®-M is based on hydrous magnesium silicate and controls the rheology by absorption of the solvent. Especially recommended for higher temperatures.
| Higher temperature applications |
Learn more about the Surface Technology business unit of Lehmann&Voss&Co.: lehvoss-surfacetec.com
These necessary cookies provide basic functions of our website. Without these cookies you cannot use e.g. shop functions or logins. The website will therefore not function properly without these cookies.
Name | Hosts | Description | Expiration | Type |
---|---|---|---|---|
PHPSESSID | www.lehvoss.fr | Stores login data |
When browser is closed | HTTP |
fe_typo_user | TYPO3 | This cookie activates basic functions and is required for the website to function properly. |
When browser is closed | HTTP |
be_typo_user | TYPO3 | This cookie is a standard TYPO3 session cookie. In the case of a backend login, it saves the session ID. |
When browser is closed | HTTP |
Youtube | www.youtube.com | |||
dv_consent | TYPO3 | Saves your cookie and tracking settings. If you delete this cookie, you will have to make the settings again. |
When browser is closed | HTTP |
These cookies help us to see how visitors use our sites. This information is collected anonymously.
Name | Hosts | Description | Expiration | Type |
---|---|---|---|---|
_ga | Google generates usage statistics; data can also be used in Google products, for example to display more relevant advertising and to measure interactions with this advertising. |
2 years | HTTP | |
_gid | Google Anayltics assigns an ID and collects statistical information about how the user uses the site. |
2 years | HTTP | |
_gat | Used by Google Analytics to monitor the request rate - e.g. which areas of the website need improvement. No personal data is collected. |
2 years | HTTP |
